Visio to EPS

1. Create Visio document

2. Adjust page size by drawing:
1. File → Page Setup…
2. Configure Page Size

3. Click on Apply, then OK

3. Save the document as PDF
1. File → Save As…
2. Select Save as type: PDF (*.pdf)
3. Click on Options…
4. Select Current page as shown below

5. Click OK
6. Click on to save the Visio document as .PDF document

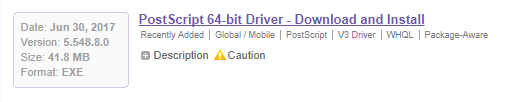

4. From Xerox website (http://www.support.xerox.com/support/global-printer-driver/downloads/enus.html?operatingSystem=win7x64&fileLanguage=en), download the software

Install the tool, it will add “Xerox Global Print Deriver PS” to the Windows

Thanks to (https://superuser.com/questions/426885/how-to-save-visio-vsd-into-eps)

5. Open the saved .PDF file

(The PDF document is snug fit to the drawing, i.e. page size is matching with drawing size)

6. Now in PDF, open the print dialog , and perform following settings

7. Click on and ensure that is selected.

8. Now print the document, the dialog box would open to for Save As, and save the file as .ps file.

9. Install Ghost View (gsv50w32.exe) and Ghost Script (gs921w32.exe).

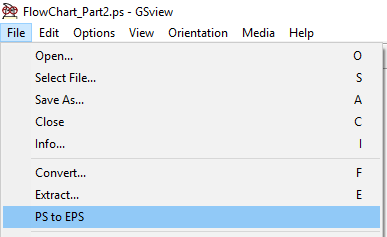

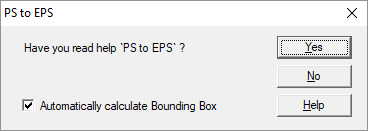

10. Open saved .ps file from Ghost View and use PS to EPS conversion

Then Save As dialog box would open, save the file as .EPS file.

11. Use this .EPS file in TexStudio

12. If required add –shell-escape in pdflatex command line:

E.g.  "/miktex/bin/pdflatex.exe" -synctex=1 -interaction=nonstopmode -shell-escape %.tex
